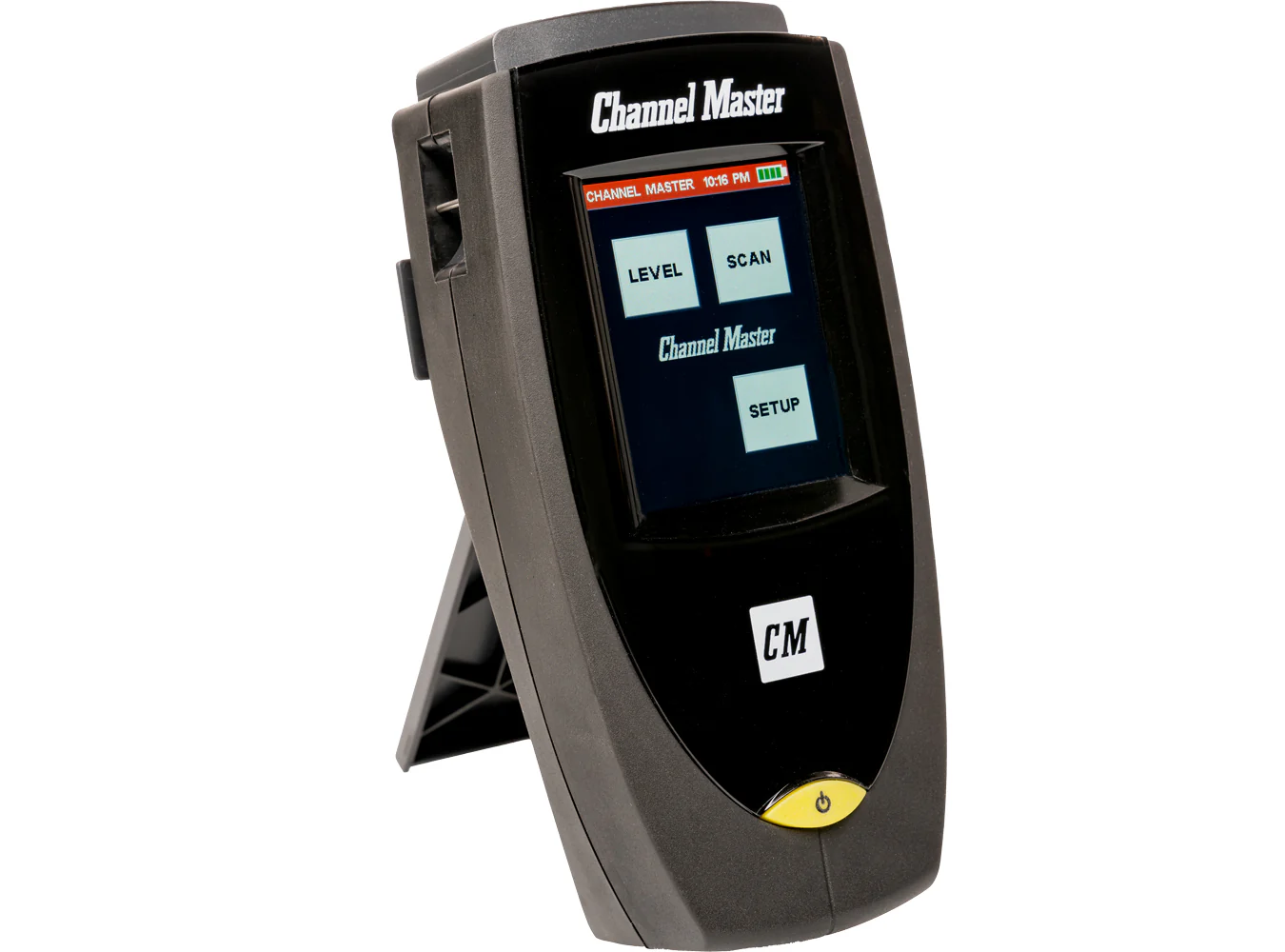

The Channel Master TV Antenna Signal Meter is designed for use by professional TV antenna installers, service technicians, and OTA enthusiasts. The TV Antenna Signal Meter will receive and measure the signal strength and signal quality of over-the-air (OTA) TV Antenna signals. The meter is ideal when installing a TV antenna allowing the installer to point and align any TV antenna for maximum signal reception. In addition to aiding new installation, the meter is also useful to verify the attenuation over coaxial cable and the insertion loss of splitters when troubleshooting signal issues.

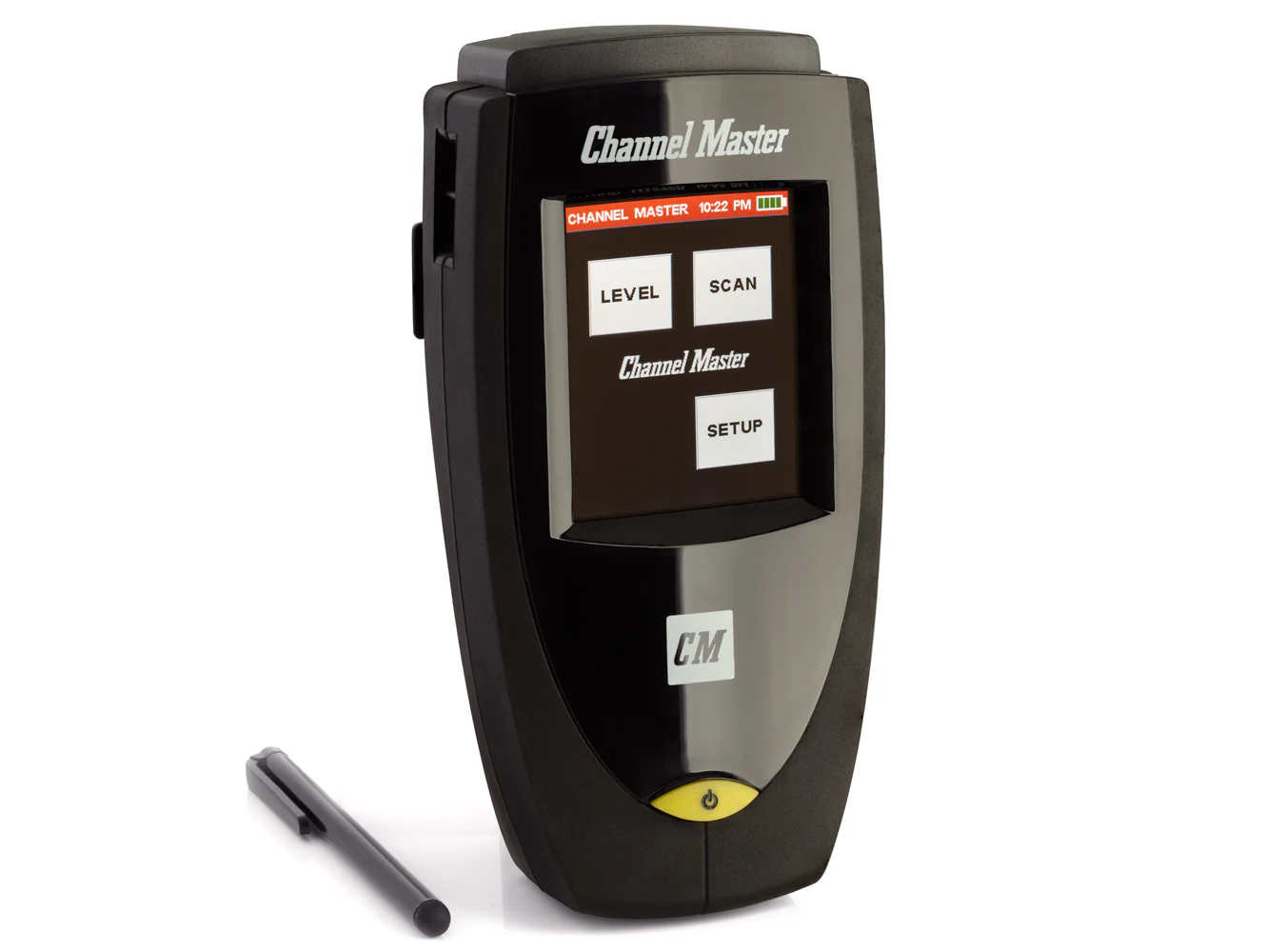

The TV Antenna Signal Strength Meter supports ATSC signals on frequencies between 54MHz and 800MHz. The meter will measure and display the RF signal level and SNR by individual channel in dBm along with a visual meter and an optional audible tone that intensifies as the signal increases. Users are also able to view the signal strength of channels across the entire OTA broadcast spectrum on a single screen. The built-in touch 2.9 Inch touchscreen display allow users to adjust the settings and control the device by simply touching the screen with the finger or using the included stylus.

The meter is compact in size and includes a protective carrying case to make it easy to handle and keep protected when climbing a ladder, tower, working on a roof, or in an attic crawl space. The built-in Li-Ion rechargeable battery pack will provide several hours of testing on a full charge. The Channel Master TV Antenna Signal Strength Meter is a must-have for anyone aiming for the highest quality TV Antenna installation.
